| HUB RIM WHEEL BUILD TECH DATA |
 |
||||
|
Here are Nimble rim,
hub and built wheel data needed for wire spoke wheel building and repair. Also listed are
current wheel configuration spoke lengths for all standard and some
special order Nimble FLY and Spider
wheels. We build at a 110 Kg maximum spoke tension. We recommend
a radial front pattern and 2x/2x or 3x/3x rear patterns. Also see our
information page on wire spokes. If you have any
questions contact us! |
||||
| HUBS | Left dia. | Left (CTF) | Right dia. | Right (CTF) |
| Front wire | 30 | 33.5 | 30 | 33.5 |
| Front high wire | 47 | 36 | 47 | 36 |

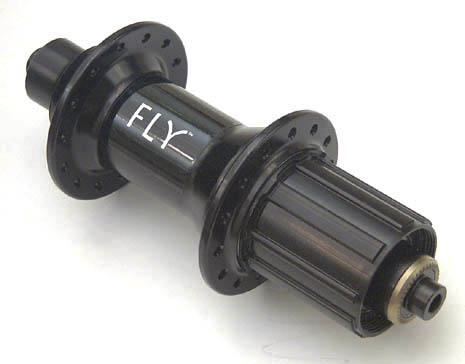

| Rear wire | 44 | 29.8 | 44 | 16.2 |
| Rear PowerTap Std/Pro | 78 | 32.7 | 66 | 16.7 |
| RIMS |
650C ERD |
700C ERD |
| FLY | 548 | 598 |
| Spider | 554 | 604 |
| Spider aero | 564 | 614 |
| WHEEL MODELS | |||||||
| FLY 650C | LENGTH | SPK | ERD | CTF | Dia | hole | X |
| F6Front | 260.0 | 1 | 548 | 33.5 | 30.0 | 2.4 | 0 |
| F6F28H HorseFLY | 251.9 | 1 | 548 | 36.0 | 47.0 | 2.4 | 0 |
| F6N handcycle | 251.9 | 1 | 548 | 36.0 | 47.0 | 2.4 | 0 |
| F6R24 NDS | 263.9 | 24 | 548 | 29.8 | 44.0 | 2.4 | 2 |
| F6R24 DS | 262.8 | 24 | 548 | 16.2 | 44.0 | 2.4 | 2 |
| F6R28 NDS | 261.2 | 28 | 548 | 29.8 | 44.0 | 2.4 | 2 |
| F6R28 DS | 260.1 | 28 | 548 | 16.2 | 44.0 | 2.4 | 2 |
| F6R32H NDS | 262.7 | 32 | 548 | 31.0 | 66.2 | 2.4 | 3 |
| F6R32H DS | 261.4 | 32 | 548 | 17.0 | 66.2 | 2.4 | 3 |
| FLY 700C | |||||||
| F7Front | 284.8 | 1 | 598 | 33.5 | 30.0 | 2.4 | 0 |
| F7F28H HorseFLY | 276.6 | 1 | 598 | 36.0 | 47.0 | 2.4 | 0 |
| F7R24 NDS | 288.8 | 24 | 598 | 29.8 | 44.0 | 2.4 | 2 |
| F7R24 DS | 287.7 | 24 | 598 | 16.2 | 44.0 | 2.4 | 2 |
| F7R28 NDS | 286.1 | 28 | 598 | 29.8 | 44.0 | 2.4 | 2 |
| F7R28 DS | 285.0 | 28 | 598 | 16.2 | 44.0 | 2.4 | 2 |
| F7R32H NDS | 287.5 | 32 | 598 | 31.0 | 66.2 | 2.4 | 3 |
| F7R32H DS | 286.3 | 32 | 598 | 17.0 | 66.2 | 2.4 | 3 |
| Spider 650C | |||||||
| S6Front | 262.9 | 1 | 554 | 33.5 | 30.0 | 2.4 | 0 |
| S6Front aero | 267.9 | 1 | 564 | 33.5 | 30.0 | 2.4 | 0 |
| S6N handcycle | 254.8 | 1 | 554 | 36.0 | 47.0 | 2.4 | 0 |
| S6N HC aero | 259.8 | 1 | 564 | 36.0 | 47.0 | 2.4 | 0 |
| S6R24 NDS | 266.9 | 24 | 554 | 29.8 | 44.0 | 2.4 | 2 |
| S6R24 DS | 265.8 | 24 | 554 | 16.2 | 44.0 | 2.4 | 2 |
| S6R28 NDS | 264.2 | 28 | 554 | 29.8 | 44.0 | 2.4 | 2 |
| S6R28 DS | 263.0 | 28 | 554 | 16.2 | 44.0 | 2.4 | 2 |
| Spider 700C | |||||||
| S7Front | 287.7 | 24 | 604 | 33.5 | 30.0 | 2.4 | 0 |
| S7Front aero | 292.7 | 24 | 614 | 33.5 | 30.0 | 2.4 | 0 |
| S7R28 NDS | 289.0 | 28 | 604 | 29.8 | 44.0 | 2.4 | 2 |
| S7R28 DS | 288.0 | 28 | 604 | 16.2 | 44.0 | 2.4 | 2 |
| S7R32 NDS | 294.5 | 32 | 604 | 29.8 | 44.0 | 2.4 | 3 |
| S7R32 DS | 293.5 | 32 | 604 | 16.2 | 44.0 | 2.4 | 3 |
| PowerTap FLY* | |||||||
| F6R24T DS | 257.3 | 24 | 548 | 16.7 | 66.0 | 2.4 | 2 |
| F6R24T NDS | 255.9 | 24 | 548 | 32.7 | 78.0 | 2.4 | 2 |
| F6R28T DS | 253.3 | 28 | 548 | 16.7 | 66.0 | 2.4 | 2 |
| F6R28T NDS | 251.1 | 28 | 548 | 32.7 | 78.0 | 2.4 | 2 |
| F7R24T DS | 282.2 | 24 | 598 | 16.7 | 66.0 | 2.4 | 2 |
| F7R24T NDS | 280.6 | 24 | 598 | 32.7 | 78.0 | 2.4 | 2 |
| F7R28T DS | 278.2 | 28 | 598 | 16.7 | 66.0 | 2.4 | 2 |
| F7R28T NDS | 275.9 | 28 | 598 | 32.7 | 78.0 | 2.4 | 2 |
| PowerTap Spider* | |||||||
| S6R24T DS | 260.3 | 24 | 554 | 16.7 | 66.0 | 2.4 | 2 |
| S6R24T NDS | 258.8 | 24 | 554 | 32.7 | 78.0 | 2.4 | 2 |
| S6R28T DS | 256.2 | 28 | 554 | 16.7 | 66.0 | 2.4 | 2 |
| S6R28T NDS | 254.1 | 28 | 554 | 32.7 | 78.0 | 2.4 | 2 |
| S7R28T DS | 281.2 | 28 | 604 | 16.7 | 66.0 | 2.4 | 2 |
| S7R28T NDS | 278.8 | 28 | 604 | 32.7 | 78.0 | 2.4 | 2 |
| S7R32T DS | 289.3 | 32 | 604 | 16.7 | 66.0 | 2.4 | 3 |
| S7R32T NDS | 288.4 | 32 | 604 | 32.7 | 78.0 | 2.4 | 3 |
| ______________ | |||||||
| *special build |
